KEGG   GLYCAN: G13177
Entry
G13177                      Glycan
Composition
(Ala)1 (GlcNAc)2 (Gro)2 (ManNAc)1 (Rib-ol)1 (*)1 (P)3 (PP-Und)1

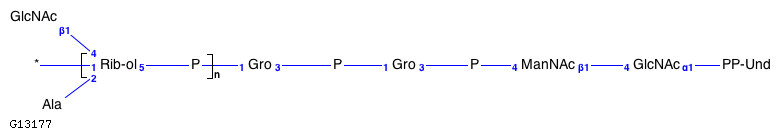

Structure
Reaction
R12873
Pathway
map00552  Teichoic acid biosynthesis
Enzyme
6.1.1.13
Reference
1  [PMID:23027967]
  Authors
Brown S, Xia G, Luhachack LG, Campbell J, Meredith TC, Chen C, Winstel V, Gekeler C, Irazoqui JE, Peschel A, Walker S
  Title
Methicillin resistance in Staphylococcus aureus requires glycosylated wall teichoic acids.
  Journal
Proc Natl Acad Sci U S A 109:18909-14 (2012)
DOI:10.1073/pnas.1209126109
Reference
2  [PMID:32540314]
  Authors
van Dalen R, Peschel A, van Sorge NM.
  Title
Wall Teichoic Acid in Staphylococcus aureus Host Interaction.
  Journal
Trends Microbiol 28:985-998 (2020)
DOI:10.1016/j.tim.2020.05.017
LinkDB
KCF data

NODE        12
            1   PP-Und   35.2  -0.1
            2   GlcNAc   26.2  -0.1
            3   ManNAc   15.4  -0.1
            4   P           8  -0.1
            5   Gro         1  -0.1
            6   P        -5.6  -0.1
            7   Gro     -13.4  -0.1
            8   P       -19.9  -0.1
            9   Rib-ol  -27.5  -0.1
            10  Ala     -34.1  -4.1
            11  *       -35.8  -0.1
            12  GlcNAc    -36   4.7
EDGE        11
            1     2:a1    1
            2     3:b1    2:4
            3     4       3:4
            4     5:3     4
            5     6       5:1
            6     7:3     6
            7     8       7:1
            8     9:5     8
            9    10       9:2
            10   11       9:1
            11   12:b1    9:4
BRACKET     1 -30.7   1.1 -30.7  -1.3
            1 -18.6  -1.4 -18.6   1.0
            1 n
